Widlaser C900Cut and engraving

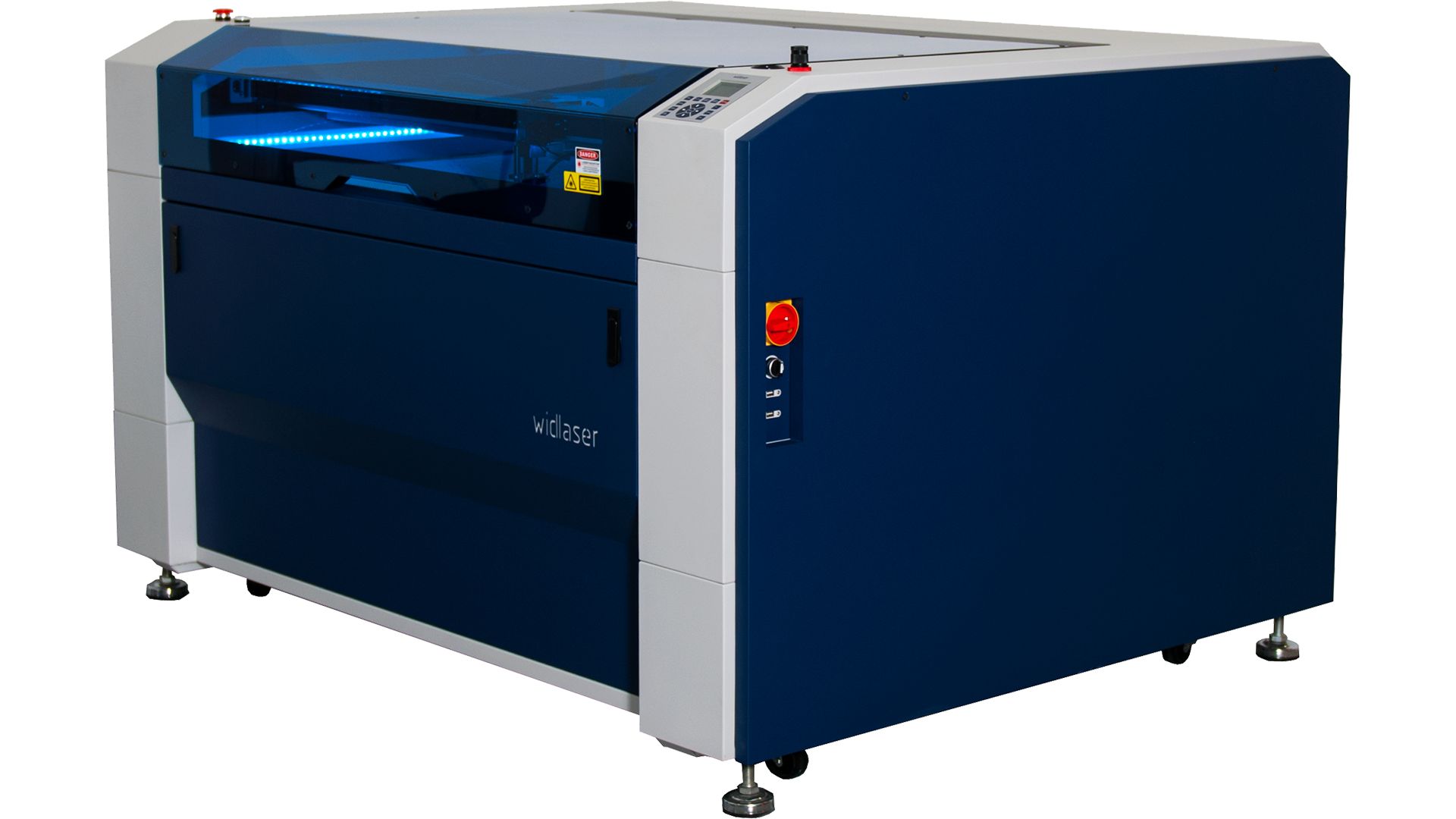

The Widlaser C900 is designed to effectively respond to the needs of the laser engraving and cutting market. We have developed a compact, fast, robust, reliable and technologically advanced equipment. The compact dual-chassis design, allows you, to have all the necessary elements to properly function with the equipment in a single volume.
Its Clean Protect design, with special dust-proof and smoke-proof linear modules allows speeds and accelerations up to 3 times higher than conventional equipment. This way, we ensure that the Widlaser C900 is always operational.
Dimensions (W x L x H): 1900 x 1550 x 1140 mm | Crate: 2070 x 1660 x 1360 mm
Weight: Aprox. 500 kg | Crate: Aprox. 550 kg
Power Supply:: AC 240v 50/60Hz
Type of Laser:: 120W CO2 Laser tube
The most reliable lasers on the market
Widinovations has a complete line of lasers, resulting from partnerships established with the most reputable brands.
User-friendly software
User-friendly software with intuitive, simple, and powerful tools suitable for beginners and professionals.
Endless applications
The limit will always be imagination!
Cutting and engraving multiple materials through a single process.Cut and engrave printed materials with perfect registration.
High-quality materials
Design and robustness with guaranteed reliability and precision.
Main specifications
- Working area: up to 1300 x 900 x 200 mm
- CO2 Laser Tube from 100W to 130W
- Automatic cooling system
- Smoke extraction
- Double compressed air control system (high-pressure regulators)
- Positioning auxiliary pointer
- Automatic focus height adjustment (autofocus)
- Sealed linear guides
- Height-adjustable table: up to 200 mm
- Removable blades
- Honeycomb table
- Objects/waste collector drawer
- Minimum font-size: 2 x 2 mm
- Maximum speed: 1000 mm/sec.
- Laser software: customized RDWorks V8 (user-friendly)
- Files: Ai, Dst, Plt, Bmp, Dxf, among others
- Connectivity: USB and Network
Options
- CO2 Laser Tube from 130W to 150W
- 30W, 60W, 80W, 100W or 120W CO2 RF laser
- 2 and 4 inch lenses
- Adapters for cylindrical objects (rotary)
- Air purifier
- CCD camera with a full working area (recognition of crosshairs for cutting or object for cutting)
- Laser software: Lightburn (User-friendly)
