Anapurna RTR3200i LEDImpressora UV LED

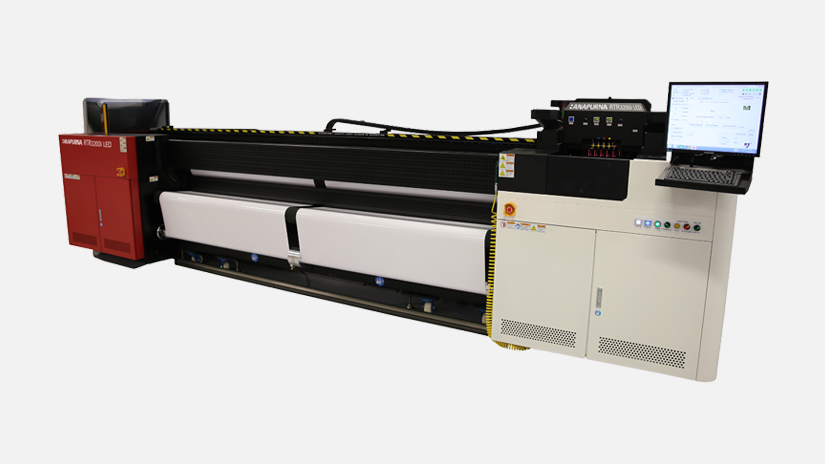

The Anapurna RTR3200i LED is a heavy-duty 3.2 meter-wide roll-to-roll UV LED-inkjet printer. It prints top-quality indoor and outdoor banners and billboards at speeds up to 127 m²/hr.
Media & Printing
- Media width 61-320 cm (24”-126”)
- Optional dual-roll kit available: support for 2 rolls of 152.4 cm (60”)
- Print width Up to 320 cm
- Optional dual-roll kit available: support for 2 rolls of 152.4 cm (60”)
- Borderless printing with mesh kit Up to 320 cm media width (126”)
- Media thickness Minimum 0.2 mm
- Maximum roll weight (including shaft) 100 kg (150kg)
- Maximum roll diameter 36 cm (14.17”)
Productivity
- Draft mode Up to 127 m²/h (Up to 1367 ft²)
- Express mode 76-85 m²/h (818-915 ft²)
- Production mode 37-65 m²/h (398-700 ft²)
- Standard mode 22-33 m²/h (237-355 ft²)
- High-quality mode 16-18 m²/h (172-194 ft²)
- High-definition Up to 9 m²/h (Up to 97 ft²) NA
- Backlit 4-9 m²/h (43-97 ft²)
Main specifications
- Print heads 6 Konica-Minolta KM1024i high-frequency print heads: 1024 nozzles/head, 12 pl (colors)
- Inks 6 Anapurna 1500 RTR LED-curable inks (CMYKLcLm)
- Text quality positive 4 point
- Text quality negative 6 point
- Dimensions (w x h x d) 5960 x 1650 x 1980 cm
- Weight 3500 kg
- Floor space 7.7 x 3 m
- Electricity 380 V 3-phase star connection with neutral wire (3 x 30A) 50/60 Hz
- Integrated production solution with Asanti; other RIPs on request
- Anapurna RTR3200i LED media/ink profiles available on Asanti
- Safety approvals CE, FCC, ROHS
