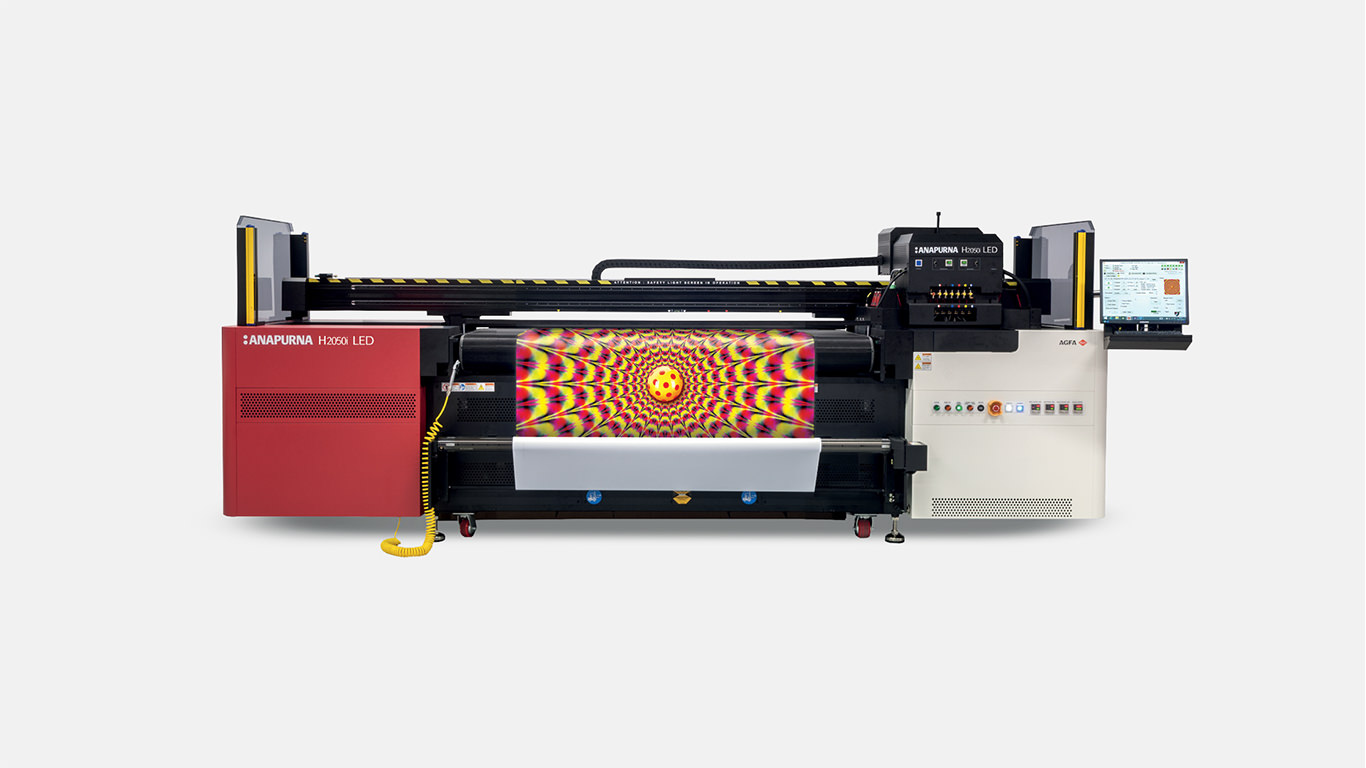

Anapurna H2050i LEDImpressora UV LED
Impressora de LED-curable com sistema de jato de tinta de alta velocidade UV híbrido com uma largura de impressão de 2,05 m para aplicações interiores e exteriores.
Rigid media
- Maximum width: 205 cm (6.7 ft), 200 cm (6.6 ft) with borderless printing
- Maximum length: 3.2 m (10.5 ft) – 4 rigid tables (2 rear & 2 front)
- Minimum size: A2, landscape
- Minimum thickness: 1 mm (0.04”)
- Maximum thickness: 45 mm (1.77”)
- Maximum weight: 10 kg/m² on printing table (22 lb)
Flexible media
- Maximum width: 205 cm (6.7 ft)
- Maximum length: n/a – restricted by weight and diameter
- Thickness: Min. 0.2 mm
- Maximum weight: 50 kg (110 lb)
- Maximum roll outside diameter: Support for 3” core-media rolls with maximum outside diameter 36 cm (14.17”)
- Borderless printing flexible media: 200 (6.6 ft)
Productivity
- Draft mode: Up till 104 m²/h (Up till 1.119 ft²/h)
- Express mode: 64-71 64 m²/h (689-764 ft²/h)
- Production mode: 32-52 m²/h (344-560 ft²/h)
- Standard quality mode: 19-28 m²/h (204-301 ft²/h)
- High-quality mode: 14-15 m²/h (151-161 ft²/h)
- High-definition mode: 8 m²/h (86 ft/h)
Main specifications
- 6 Konica-Minolta KM1024i-heads: 1024 nozzles/head with a droplet volume of 12 pl (colors)
- 2 Konica-Minolta KM1024i-heads: 30 pl (white in line)
- CMYKLcLm + white
- High-quality prints: Up to 720 x 1400 dpi
- Text quality: Positive 4 point / Negative 6 point
- Printer dimensions (H x W x L): 169 x 458 x 154 cm (67 x 180 x 61″)
- Weight: 1800 kg (3968 lb)
- 380 V 3-phase star connection with Neutral wire (3x 32A*) 50/60Hz
- 230V 3-phase delta connection without Neutral wire (3x 30A*) 50/60 Hz
- Oil-free 5-30 l/min @6bar
