anapurna_m3200i_rtr_01

Anapurna M3200i RTRImpressora UV LED

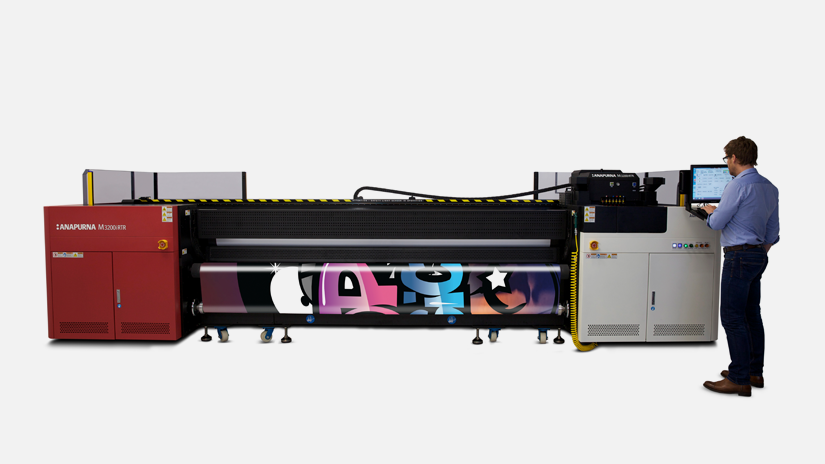

The Anapurna M3200i RTR is a high-speed 3.2 meter-wide roll-to-roll UV inkjet printer. It prints top-quality indoor and outdoor banners and billboards in a six, a four, or a four color plus white configuration, at speeds up to 123 m2/hr.

Media & Printing

  • Media width 61-320 cm (24”-126”)
  • Optional dual roll kit available: support for 2 rolls of 152.4 cm (60”)
  • Print width Up to 320 cm
  • Optional dual roll kit available: support for 2 rolls of 152.4 cm
  • Borderless printing with mesh kit Up to 320 cm media width (126”)
  • Media thickness Minimum 0.2 mm
  • Maximum roll weight 100 kg (150kg)
  • Maximum roll diameter 36 cm (14.17”)

Productivity

  • Express mode Up to 75 m²/h
  • Production mode Up 38 m²/h
  • Standard mode Up to 30 m²/h
  • High quality mode Up to 23 m²/h
  • High definition Up to 18 m²/h
  • Backlit 6 to 9m²/h, depending on resolution

Main specifications

  • Print heads 4 or 6 Konica-Minolta KM1024i high-frequency print heads: 1024 nozzles/head, 12 pl (colors)
  • Inks 4 or 6 Anapurna M UV-curable inks (CMYK / CMYKLcLm)
  • Text quality positive 4 point
  • Text quality negative 6 point
  • Dimensions (w x h x d) 5960 x 1650 x 1980 cm
  • Weight 3500 kg
  • Floor Space 7.7 x 3 m
  • Electricity 380 V 3-phase star connection with neutral wire (3 x 40A) 50/60 Hz
  • Integrated production solution with Asanti; other RIPs on request
  • Anapurna M3200i RTR media/ink profiles available on Asanti
  • Safety approvals CE, FCC, ROHS
