anapurna h2500i

Anapurna H2500i LEDImpressora UV LED

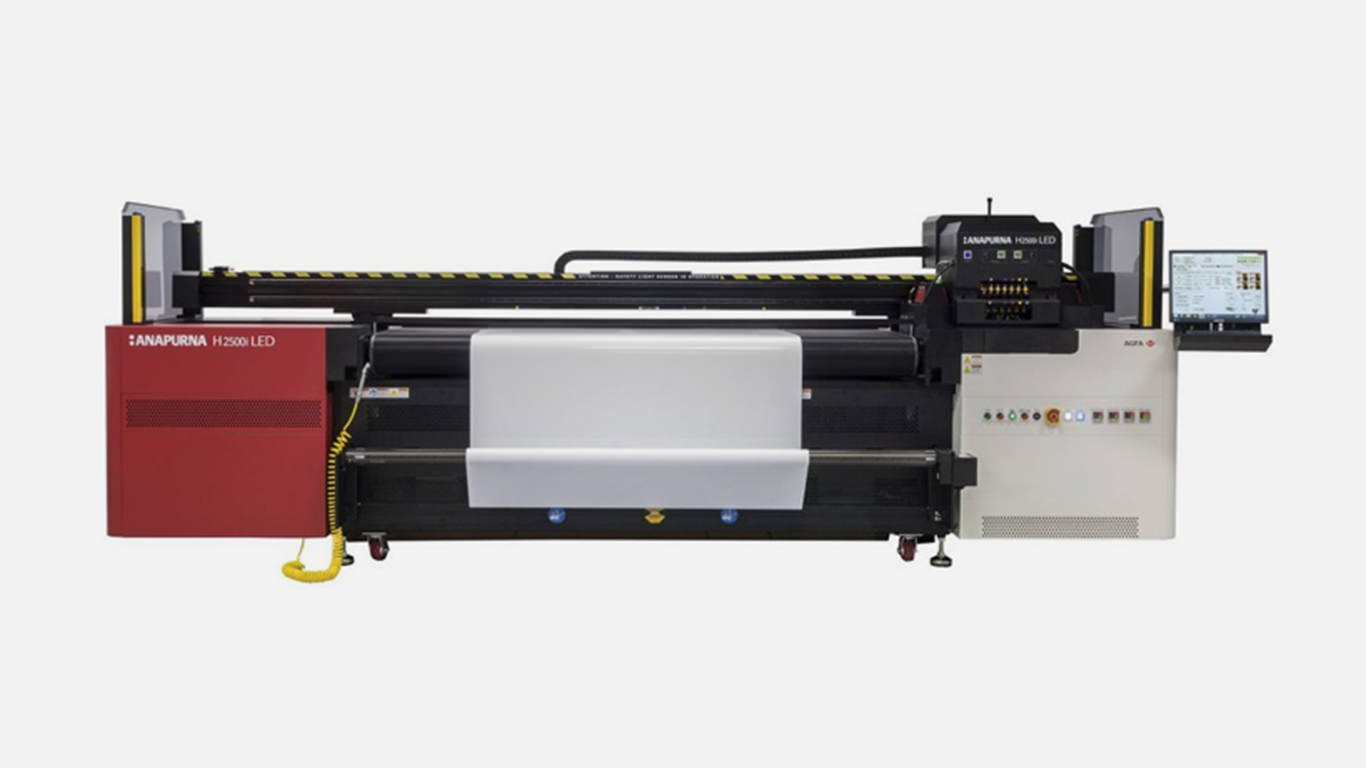

The Anapurna H2500i LED is a high-speed hybrid UV LED-curable inkjet system with a printing width of 2.5 m for indoor and outdoor applications.

Rigid media

  • Maximum width: 250 cm (8.2 ft), 247 cm (8.1 ft) with borderless printing printing
  • Maximum length: Supported by 1 rigid roller table: 140 cm (4.59 ft), Supported by 1 rigid roller table + media extension table (default): 320 cm (10.5 ft)
  • Minimum size: A2 landscape (60 x 42 cm – 1.97 x 1.4 ft)
  • Minimum thickness: 1 mm (0.04”)
  • Maximum thickness: 45 mm (1.77”)
  • Maximum weight: 10 kg/m² on printing table (xxx)

Flexible media

  • Maximum width: 250 cm (8.2 ft)
  • Maximum length: n/a – restricted by weight and diameter
  • Thickness: Min. 0.2 mm
  • Maximum weight: 50 kg (110 lb)
  • Maximum roll outside diameter: Support for 3” core-media rolls with maximum outside diameter 36 cm (14.17”)
  • Borderless printing flexible media: 247 cm (8.1 ft)

Productivity

  • Draft mode: Up till 115 m²/h (up till 1,238 ft²/h)
  • Express mode: 70-78 m²/h (753-840 ft²/h)
  • Production mode: 32-52 m²/h (344-560 ft²/h)
  • Standard quality mode: 35-57 m²/h (377-614 ft²/h)
  • High-quality mode: 21-31 m²/h (226-334 ft²/h)
  • High-definition mode: 16-17 m²/h (172-183 ft²/h)

Main specifications

  • 6 Konica-Minolta KM1024i-heads: 1024 nozzles/head with a droplet volume of 12 pl (colors)
  • 2 Konica-Minolta KM1024i-heads: 30 pl (white in line)
  • CMYKLcLm + white
  • High-quality prints: Up to 720 x 1440 dpi
  • Text quality: Positive: 4 point / Negative: 6 point
  • Printer dimensions (H x W x L): 169 x 475 x 173 cm (67 x 187 x 68”)
  • Weight: 2200 kg (4850 lb)
  • 380 V 3-phase star connection with Neutral wire (3x 32A*) 50/60Hz
  • 230V 3-phase delta connection without Neutral wire (3x 30A*) 50/60 Hz
  • Oil free 5-30 l/min @6bar
